EduGateway(TM) Chess Program

This is a moderately complicated program that provides a graphical chessboard for two players. The board can accept either mouse clicks or standard chess notation to specify moves. Standard notation is displayed which is handy for playing chess by mail (or email). This version was written quickly and is not a stellar example of good programming practice. Even so, it does demonstrate the mouse interface, graphics techniques, error handling, and file I/O. This program contains many advanced features of QBASIC and may be difficult for beginners to understand since the commenting is minimal. It is provided here as an example of what can be done using the tools freely available to most PC users.

You can use your web browser to copy this program to the clipboard. Then paste it into any text editor (like Windows Notepad), and save it in a file called "chess.bas". Then use DOS QBASIC to open the file and run it.

Instructions to Copy
  1. Start by selecting all of the program text below (between the horizontal bars).
  2. Then press the "Copy" button on your browser (usually Edit/Copy).
  3. Next open an editor to paste into (Windows Notepad works well).
  4. Then paste the text (typically Edit/Paste).
  5. Finally save the file as "Chess.bas" in an appropriate folder.

Instructions to Run

  1. Open a DOS window (or restart in DOS).
  2. Use the "cd" command to move to the directory (or folder) from step 5 above.
  3. Type "QBASIC CHESS.BAS" (Note: QBASIC.EXE may be on your Windows CD).
  4. QBASIC will show the program. Select Run/Start from the menu bar.
  5. The program will ask if you want to use the mouse (answer "1" for yes).
  6. The program will ask if you want to play white, black, or rotate - Select one.

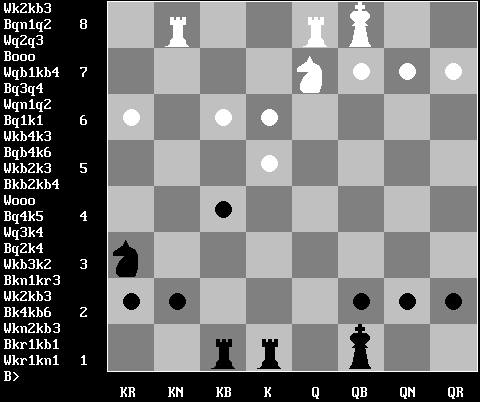

  7. The program will display the chess board and the notation will scroll on the left.
  8. Use the left mouse button to select (or reselect) a piece to move.
  9. Use the right mouse button to select a destination.
  10. Be careful because there's no "Undo" option, and there are no legality checks on your moves.
  11. You can also type in moves by clicking the background surrounding the chess board.
  12. The format for moves is sRow sCol dRow dCol where s=source, d=destination.
  13. The Column choices are displayed along the bottom of the board.
  14. The Row choices are displayed along the left side of the board.
  15. The entire move is typed together, so KB3->K2 would be written kb3k2.

' Copyright @ 2001  by  Robert M. Kuczewski
' Right to copy is granted to all provided all Copyright notices are maintained

DECLARE FUNCTION encodeCmd$ (fromX AS INTEGER, fromY AS INTEGER, toX AS INTEGER, toY AS INTEGER)
DECLARE FUNCTION DoCmd (command AS STRING, fromRow AS INTEGER, fromCol AS INTEGER, toRow AS INTEGER, toCol AS INTEGER)
DECLARE SUB NewBoard ()
DECLARE SUB RotateBoard ()
DECLARE SUB DrawBoard ()
DECLARE SUB DrawFig (x AS INTEGER, y AS INTEGER, w AS INTEGER, h AS INTEGER, c AS INTEGER, s AS STRING)

DIM SHARED board(8, 8) AS STRING * 1
'Pawn Rook, kNight, Bishop, Queen, King (caps are white, lower are black)
DIM SHARED blackPieces AS STRING: blackPieces = "rnbqkbnr"
DIM SHARED whitePieces AS STRING: whitePieces = "RNBQKBNR"
DIM SHARED whitelabels AS STRING: whitelabels = " QR    QN    QB    Q     K    KB    KN    KR"
DIM SHARED blacklabels AS STRING: blacklabels = " KR    KN    KB    K     Q    QB    QN    QR"
DIM SHARED labels AS STRING: labels = whitelabels
DIM SHARED gameMode AS STRING
DIM SHARED gameView AS STRING
DIM SHARED gameTurn AS STRING
DIM SHARED command AS STRING
DIM SHARED boardw AS INTEGER, boardh AS INTEGER, boardx AS INTEGER, boardy AS INTEGER
DIM SHARED squarew AS INTEGER, squareh AS INTEGER

DIM fromRow AS INTEGER, fromCol AS INTEGER, toRow AS INTEGER, toCol AS INTEGER
DIM moveCode AS INTEGER
CONST fileClosed = 0, fileReading = 1, fileWriting = 2
DIM fileMode AS INTEGER: fileMode = fileClosed
DIM fileName AS STRING: fileName = "chessmov.txt"
DIM fileFound AS INTEGER: fileFound = 0
DIM newGame AS INTEGER: newGame = 1
CONST moveHistLen = 1000
DIM SHARED moveHistory(moveHistLen) AS STRING * 7
DIM inputRow AS INTEGER: inputRow = 24

DIM fileVersion AS INTEGER: fileVersion = 0

' Set up the mouse variables and call interface

DIM fromX AS INTEGER, fromY AS INTEGER, toX AS INTEGER, toY AS INTEGER
DIM mouseg AS INTEGER, mouse AS INTEGER, mouseExists AS INTEGER
DIM Buttons AS INTEGER

ON ERROR GOTO Handler

SCREEN 12

CLS

PRINT ""
PRINT "Opening ["; fileName; "]"
fileFound = 1
OPEN fileName FOR INPUT AS #1
IF fileFound = 0 THEN
  OPEN fileName FOR OUTPUT AS #1
  PRINT #1, fileVersion
  fileMode = fileWriting
ELSE
  INPUT #1, fileVersion
  fileMode = fileReading
END IF

DO

  IF newGame <> 0 THEN
    FOR i = 1 TO moveHistLen
      moveHistory(i) = " "
    NEXT i
    CLS
    LOCATE 1, 1
    mouseExists = 1
    INPUT "Use the mouse (0 or 1)"; mouseExists

    IF mouseExists THEN
      DEF SEG = 0
      mouseg = 256 * PEEK(207) + PEEK(206)
      mouse = 256 * PEEK(205) + PEEK(204) + 2
      DEF SEG = mouseg
      IF ((mouseg OR (mouse - 2)) AND (PEEK(mouse - 2) <> 207)) = 0 THEN
        mouseExists = 0
      END IF
      DEF SEG
    END IF

    IF mouseExists THEN
      'Reset the mouse and get its status
      m1% = 0: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG

      IF m1% <> -1 THEN
        mouseExists = 0
      END IF
    END IF

    IF mouseExists THEN
      'Turn on the mouse cursor
      m1% = 1: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG

      'Turn off the mouse cursor
      m1% = 2: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG
    END IF

    CLS

    'Ask for the initial mode
    INPUT "White? Black? Rotate"; gameMode
    gameMode = UCASE$(MID$(gameMode, 1, 1))
    gameView = gameMode
    IF gameView = "R" THEN
      gameView = "W"
    END IF
    gameTurn = "W"
    CLS

    'Create a new board
    NewBoard
    newGame = 0
  END IF

  IF (gameMode = "B") OR ((gameMode = "R") AND (gameTurn = "B")) THEN
    RotateBoard
    DrawBoard
    RotateBoard
  ELSE
    DrawBoard
  END IF

  IF fileMode = fileReading THEN  ' Reading from file
    IF EOF(1) THEN
      fileMode = fileWriting
      CLOSE #1
      fileFound = 1
      OPEN fileName FOR APPEND AS #1
      IF fileFound = 0 THEN
        OPEN fileName FOR OUTPUT AS #1
      END IF
      command = ""
    ELSE
      LINE INPUT #1, command
    END IF
  ELSE
    FOR i = 1 TO inputRow - 1
      LOCATE i, 1
      PRINT moveHistory(inputRow - i); "            ";
    NEXT i
    LOCATE inputRow, 1
    PRINT "                        ";
    LOCATE inputRow, 1
    PRINT gameTurn; "> ";
    IF mouseExists THEN
      'Turn on the mouse cursor
      m1% = 1: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG

      Buttons = 0
      DO
        ' Read the Mouse Button Status and Position
        m1% = 3: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG
        Buttons = m2%
        IF Buttons <> 0 THEN
          IF (m3% < boardx) OR (m3% > (boardx + boardw)) OR (m4% < boardy) OR (m4% > (boardy + boardh)) THEN
            Buttons = -1
          END IF
        END IF
      LOOP WHILE ABS(Buttons) <> 1
      fromX = m3%: fromY = m4%: toX = m3%: toY = m4%

      IF Buttons < 0 THEN
        command = "Keybrd"
      ELSE
        Buttons = 0
        DO
          ' Read the Mouse Button Status and Position
          m1% = 3: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG
          Buttons = m2%
          IF Buttons = 1 THEN
            ' LOCATE inputRow, 1
            fromX = m3%: fromY = m4%
            ' PRINT "From "; fromX; fromY
          END IF
        LOOP WHILE Buttons <> 2
        toX = m3%: toY = m4%
        command = encodeCmd$(fromX, fromY, toX, toY)
      END IF
      IF command = "Keybrd" THEN
        LOCATE inputRow, 1
        PRINT gameTurn; "> ";
        INPUT ; "", command
      END IF

      'Turn off the mouse cursor
      m1% = 2: DEF SEG = mouseg: CALL absolute(m1%, m2%, m3%, m4%, mouse): DEF SEG
    ELSE
      LINE INPUT command
    END IF
  END IF

  moveCode = 0
  IF (command = "?") OR (LCASE$(command) = "help") THEN
    CLS
    PRINT "Help:"
    PRINT " 'new' starts a new game"
    PRINT " 'open filename' runs old game"
    PRINT " 'quit' exits (game in chessmov.txt)"
    PRINT " All regular moves use ColRowColRow:"
    PRINT "   Where Col is QR QN QB Q K KB KN KR"
    PRINT "     and Row is a number from 1 to 8"
    PRINT "   For example: k2k4 or qn1qb3"
    PRINT "   oo is castling on the King's side"
    PRINT "   ooo is castling on the Queen's side"
    PRINT " Left Mouse Button selects 'From'"
    PRINT " Right Mouse Button moves 'To'"
    PRINT " "
    PRINT "Press any key to continue...";
    LINE INPUT command
    command = ""
    CLS
  ELSEIF LCASE$(MID$(command, 1, 3)) = "new" THEN
    newGame = 1
    CLOSE #1
    fileName = LTRIM$(RTRIM$(MID$(command, 4)))
    PRINT ""
    PRINT "Opening ["; fileName; "]"
    fileFound = 1
    OPEN fileName FOR OUTPUT AS #1
    IF fileFound = 0 THEN
      fileMode = fileClosed
    ELSE
      PRINT #1, fileVersion
      fileMode = fileWriting
    END IF
  ELSEIF LCASE$(MID$(command, 1, 4)) = "open" THEN
    newGame = 1
    CLOSE #1
    fileName = LTRIM$(RTRIM$(MID$(command, 5)))
    PRINT ""
    PRINT "Opening ["; fileName; "]"
    fileFound = 1
    OPEN fileName FOR INPUT AS #1
    IF fileFound = 0 THEN
      OPEN fileName FOR OUTPUT AS #1
      PRINT #1, fileVersion
      fileMode = fileWriting
    ELSE
      INPUT #1, fileVersion
      fileMode = fileReading
    END IF
  ELSEIF LCASE$(MID$(command, 1, 4)) = "quit" THEN
    END
  ELSE

    IF (UCASE$(MID$(command, 1, 1)) <> "B") AND (UCASE$(MID$(command, 1, 1)) <> "W") THEN
      command = gameTurn + command
    END IF
    moveCode = DoCmd(command, fromRow, fromCol, toRow, toCol)
    IF moveCode > 0 THEN
      IF fileMode = fileWriting THEN
        PRINT #1, command
      END IF
      FOR i = moveHistLen TO 2 STEP -1
        moveHistory(i) = moveHistory(i - 1)
      NEXT i
      moveHistory(1) = command
      IF gameTurn = "W" THEN
        gameTurn = "B"
      ELSE
        gameTurn = "W"
      END IF
    END IF
    CLS
  END IF

LOOP

Handler:
  SELECT CASE ERR
    CASE 52
      fileFound = 0
      RESUME NEXT
    CASE 53
      fileFound = 0
      RESUME NEXT
    CASE 71
      PRINT
      PRINT "Error "; ERR; " on line "; ERL
      PRINT "Using device "; ERDEV$; " device error code = "; ERDEV
      RESUME NEXT
    CASE 11
      PRINT
      PRINT "Error "; ERR; " on line "; ERL
      INPUT "What value do you want to divide by"; y%
      RESUME                  'Retry line 30 with new value of y%.
    CASE ELSE
      PRINT
      PRINT "Error "; ERR; " on line "; ERL
      PRINT "Unexpected error, ending program."
      END
  END SELECT

FUNCTION DoCmd (command AS STRING, fromRow AS INTEGER, fromCol AS INTEGER, toRow AS INTEGER, toCol AS INTEGER)
  DIM result AS INTEGER
  DIM nxt AS INTEGER
  DIM side AS INTEGER
  DIM col AS INTEGER
  DIM row AS INTEGER
  DIM temps AS STRING

  nxt = 1

  IF (UCASE$(MID$(command, nxt, 1)) = "B") OR (UCASE$(MID$(command, nxt, 1)) = "W") THEN
    nxt = nxt + 1
  END IF

  IF (1 = 0) AND (UCASE$(MID$(command, nxt, 1)) <> gameTurn) THEN
    PRINT "Command Error: "; command; " <> "; gameTurn
    result = 0
    DoCmd = 0
    EXIT FUNCTION
  ELSE
    nxt = nxt + 1
    nxt = nxt - 1
    IF UCASE$(MID$(command, nxt, 3)) = "OOO" THEN
      'Castle on Queen's Side (move King first)
      fromRow = 1 ' King's row
      IF (gameTurn = "W") THEN
        fromRow = 9 - fromRow
      END IF
      toRow = fromRow

      'Now Move the King (remembering board is a zero-based array)
      board(toRow - 1, 2) = board(fromRow - 1, 4)
      board(fromRow - 1, 4) = " "

      'Now Move the Rook (remembering board is a zero-based array)
      board(toRow - 1, 3) = board(fromRow - 1, 0)
      board(fromRow - 1, 0) = " "
      result = 9000
    ELSEIF UCASE$(MID$(command, nxt, 2)) = "OO" THEN
      'Castle on King's Side (move King first)
      fromRow = 1 ' King's row
      IF (gameTurn = "W") THEN
        fromRow = 9 - fromRow
      END IF
      toRow = fromRow

      'Now Move the King (remembering board is a zero-based array)
      board(toRow - 1, 6) = board(fromRow - 1, 4)
      board(fromRow - 1, 4) = " "

      'Now Move the Rook (remembering board is a zero-based array)
      board(toRow - 1, 5) = board(fromRow - 1, 7)
      board(fromRow - 1, 7) = " "
      result = 9900
    ELSE
      'This is a non-castling move that must have a "from" and a "to"
      FOR location = 1 TO 2
        IF UCASE$(MID$(command, nxt, 2)) = "QR" THEN
          col = 1: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 2)) = "QN" THEN
          col = 2: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 2)) = "QB" THEN
          col = 3: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 2)) = "KR" THEN
          col = 8: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 2)) = "KN" THEN
          col = 7: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 2)) = "KB" THEN
          col = 6: nxt = nxt + 2
        ELSEIF UCASE$(MID$(command, nxt, 1)) = "Q" THEN
          col = 4: nxt = nxt + 1
        ELSEIF UCASE$(MID$(command, nxt, 1)) = "K" THEN
          col = 5: nxt = nxt + 1
        ELSE
          PRINT "Command Error: "; command; " <> "; gameTurn
          result = 0
          DoCmd = 0
          EXIT FUNCTION
        END IF
        row = VAL(MID$(command, nxt, 1))
        nxt = nxt + 1
        IF (row < 1) OR (row > 8) THEN
          PRINT "Command Error: "; command; " <> "; gameTurn
          result = 0
          DoCmd = 0
          EXIT FUNCTION
        END IF
        IF location = 1 THEN
          fromRow = row
          fromCol = col
        ELSE
          toRow = row
          toCol = col
        END IF
      NEXT location

      ' Invert the rows for white since white looks "up" into the board array
      IF (gameTurn = "W") THEN
        fromRow = 9 - fromRow
        toRow = 9 - toRow
      END IF

      result = (((((fromRow * 10) + fromCol) * 10) + toRow) * 10) + toCol
      IF result > 0 THEN
        'Make the actual move remembering that the board is 0-based
        board(toRow - 1, toCol - 1) = board(fromRow - 1, fromCol - 1)
        board(fromRow - 1, fromCol - 1) = " "
      END IF

    END IF

  END IF

  DoCmd = result

END FUNCTION

SUB DrawBoard

  DIM pieceName AS STRING * 1
  DIM x AS INTEGER, y AS INTEGER, c AS INTEGER

  boardw = 370
  boardh = 370
  boardx = 638 - boardw
  boardy = 1

  squarew = boardw / 8
  squareh = boardh / 8

  ' First draw the board

  LINE (boardx - 1, boardy - 1)-(boardx + boardw + 1, boardy + boardh + 1), 15, BF
  FOR row = 0 TO 7
    y = boardy + (row * squareh)
    FOR col = 0 TO 7
      x = boardx + (col * squarew)
      IF (row + col) MOD 2 <> 0 THEN
        LINE (x, y)-(x + squarew, y + squareh), 8, BF
      ELSE
        LINE (x, y)-(x + squarew, y + squareh), 7, BF
      END IF
    NEXT col
  NEXT row

  ' Now draw the pieces

  FOR row = 0 TO 7
    y = boardy + (row * squareh)
    FOR col = 0 TO 7
      x = boardx + (col * squarew)
      pieceName = board(row, col)
      IF pieceName >= "a" THEN
        c = 0
      ELSE
        c = 15
      END IF
      pieceName = LCASE$(pieceName)
      IF pieceName = "p" THEN
        CIRCLE (x + (squarew / 2), y + (squareh / 2)), squareh / 6, c
        PAINT (x + (squarew / 2), y + (squareh / 2)), c, c
      ELSEIF pieceName = "r" THEN
        CALL DrawFig(x, y, squarew, squareh, c, ".65 +3 -3 +7+0 -1-1 +0-1 -1-1 +0-4 +1+0 +0-2 -1+0 +0+1 -1+0 +0-1 -1+0 +0+1 -1+0 +0-1 -1+0 +0+2 +1+0 +0+4 -1+1 +0+1 -1+1")
      ELSEIF pieceName = "n" THEN
        CALL DrawFig(x, y, squarew, squareh, c, ".75 +4 -4 +5+0 +1-3 +0-4 -1-2 -2-1 -1-2 -1+2 -3+2 +0+1 +4+0 -2+2 -1+2 +0+2 +1+1")
      ELSEIF pieceName = "b" THEN
        CALL DrawFig(x, y, squarew, squareh, c, ".8 +3 -2 +7+0 -1-1 +0-1 -1-1 +0-5 +1+0 -1-1 +1-2 -1-2 -1-1 +0-1 -1+0 +0+1 +0+3 -1-2 -1+2 +1+2 -1+1 +1+0 +0+5 -1+1 +0+1 -1+1")
      ELSEIF pieceName = "q" THEN
        CALL DrawFig(x, y, squarew, squareh, c, ".85 +0 -3 +10+0 -1-2 -2-10 +0-4 +2+0 -1-1 +0-2 +1-4 -2+2 -1-2 -1+2 -1-2 -1+2 -2-2 +1+4 +0+2 -1+1 +2+0 +0+4 -2+10 -1+2 +5+0")
      ELSEIF pieceName = "k" THEN
        CALL DrawFig(x, y, squarew, squareh, c, ".9 +0 -3 +7+0 -1-2 -1-6 +1+0 -1-1 +2-2 +0-1 -1-1 -2+0 +0-1 +1+0 +0-1 -1+0 +0-1 -1+0 +0+1 -1+0 +0+1 +1+0 +0+1 -2+0 -1+1 +0+1 +2+2 -1+1 +1+0 -1+6 -1+2 +3+0")
      ELSEIF board(row, col) <> " " THEN
        CIRCLE (x + (squarew / 2), y + (squareh / 2)), squareh / 4, c
        PAINT (x + (squarew / 2), y + (squareh / 2)), c, c
      END IF
    NEXT col
  NEXT row

  'Finally Draw the labels

  LOCATE 25, 35
  PRINT labels;

  FOR row = 1 TO 8
    LOCATE (3 * row) - 1, 30
    IF gameTurn <> gameView THEN
      PRINT row
    ELSE
      PRINT 9 - row
    END IF
  NEXT row

END SUB

SUB DrawFig (x AS INTEGER, y AS INTEGER, w AS INTEGER, h AS INTEGER, c AS INTEGER, drawString AS STRING)
  DIM s AS STRING
  DIM pass AS INTEGER
  DIM p, m, i AS INTEGER
  DIM minx AS INTEGER, maxx AS INTEGER, miny AS INTEGER, maxy AS INTEGER
  DIM curx AS INTEGER, cury AS INTEGER
  minx = 0: maxx = 0: miny = 0: maxy = 0
  xoffset = 5
  xscale = 3
  yoffset = 2
  yscale = 3

  FOR pass = 1 TO 2
    s = drawString

    scale = VAL(s): i = INSTR(1, s, " "): s = MID$(s, i + 1)
    filldx = VAL(s): i = INSTR(1, s, " "): s = MID$(s, i + 1)
    filldy = VAL(s): i = INSTR(1, s, " "): s = MID$(s, i + 1)

    curx = 0: cury = 0
    IF pass = 2 THEN
      xscale = w / (maxx - minx)
      yscale = h / (maxy - miny)
      IF xscale < yscale THEN
        yscale = xscale
      ELSE
        xscale = yscale
      END IF
      xscale = scale * xscale
      yscale = scale * yscale
      xoffset = (w - (xscale * (maxx - minx))) / 2
      yoffset = 2
      LINE (x + xoffset, y + h - yoffset)-(x + xoffset, y + h - yoffset)
    END IF
    DO WHILE LEN(s) > 0
      dx = VAL(s)
      p = INSTR(2, s, "+")
      m = INSTR(2, s, "-")
      i = p
      IF (m > 0) AND (m < p) THEN i = m
      IF i > 0 THEN
        s = MID$(s, i)
      ELSE
        EXIT DO
      END IF
      dy = VAL(s)
      p = INSTR(2, s, "+")
      m = INSTR(2, s, "-")
      i = p
      IF (m > 0) AND (m < p) THEN i = m
      IF i > 0 THEN
        s = MID$(s, i)
      END IF
      curx = curx + dx
      cury = cury + dy
      IF pass = 1 THEN
        IF curx > maxx THEN maxx = curx
        IF cury > maxy THEN maxy = cury
        IF curx < minx THEN minx = curx
        IF cury < miny THEN miny = cury
      ELSE
        ' PRINT dx; dy
        LINE -STEP(xscale * dx, yscale * dy), c
      END IF
    LOOP
    IF pass > 1 THEN
      PAINT STEP(xscale * filldx, yscale * filldy), c
    END IF
  NEXT pass
END SUB

FUNCTION encodeCmd$ (fromX AS INTEGER, fromY AS INTEGER, toX AS INTEGER, toY AS INTEGER)
  DIM fr AS INTEGER, fc AS INTEGER, tr AS INTEGER, tc AS INTEGER
  DIM colCodes(8) AS STRING
  colCodes(1) = "qr"
  colCodes(2) = "qn"
  colCodes(3) = "qb"
  colCodes(4) = "q"
  colCodes(5) = "k"
  colCodes(6) = "kb"
  colCodes(7) = "kn"
  colCodes(8) = "kr"

  fc = 1 + ((fromX - boardx) \ squarew)
  tc = 1 + ((toX - boardx) \ squarew)
  fr = 8 - ((fromY - boardy) \ squareh)
  tr = 8 - ((toY - boardy) \ squareh)

  IF (LCASE$(gameMode) <> "r") AND (LCASE$(gameMode) <> LCASE$(gameTurn)) THEN
    fr = 9 - fr
    tr = 9 - tr
  END IF
  IF LCASE$(gameMode) <> "w" THEN
    fc = 9 - fc
    tc = 9 - tc
  END IF
  IF (LCASE$(gameMode) = "r") AND (LCASE$(gameTurn) = "w") THEN
    fc = 9 - fc
    tc = 9 - tc
  END IF

  IF (fr < 1) OR (fc < 1) OR (tr < 1) OR (tc < 1) OR (fr > 8) OR (fc > 8) OR (tr > 8) OR (tc > 8) THEN
    encodeCmd$ = "Keybrd"
  ELSE
    encodeCmd$ = colCodes(fc) + HEX$(fr) + colCodes(tc) + HEX$(tr) ' + gameMode + gameView + gameTurn
  END IF
END FUNCTION

SUB NewBoard
  DIM row AS INTEGER, col AS INTEGER

  ' First clear the board
  FOR row = 0 TO 7
    FOR col = 0 TO 7
      board(row, col) = " "
    NEXT col
  NEXT row

  ' Then set up all the pieces with White as the default
  FOR col = 0 TO 7
    board(0, col) = MID$(blackPieces, col + 1, 1)
    board(7, col) = MID$(whitePieces, col + 1, 1)
    board(1, col) = "p"
    board(6, col) = "P"
  NEXT col

END SUB

SUB RotateBoard

 FOR row = 0 TO 3
    FOR col = 0 TO 7
      temp$ = board(row, col)
      board(row, col) = board(7 - row, 7 - col)
      board(7 - row, 7 - col) = temp$
    NEXT col
  NEXT row
  IF labels = whitelabels THEN
    labels = blacklabels
    gameView = "B"
  ELSE
    labels = whitelabels
    gameView = "W"
  END IF

END SUB
© 2000-2001 EduGateway(TM)
